A native packer for Android/MoqHao

@cryptax
3 min readMay 18, 2021

--

Update May 20, 2021. Added info on Pinterest URLs + Kudos to @bl4ckh0l3z + actually was discovered on May 12 not May 13.

On May 12, 2021 a new sample of Android/MoqHao (aka XLoader, Wroba) banking trojan was detected. There are several changes compared to 2019: new commands, communicating CnC URL through malicious Pinterest accounts etc. See below.

sha256: aad80d2ad20fe318f19b6197b76937bf7177dbb1746b7849dd7f05aab84e6724

Comparing sample of 2021 (sha256: aad80d2ad20fe318f19b6197b76937bf7177dbb1746b7849dd7f05aab84e6724 ) with sample of 2019 (analyzed here)

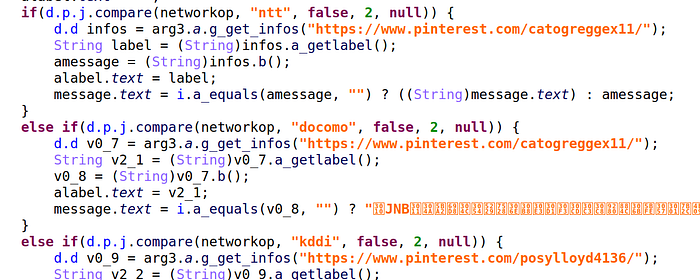

This is the part of the malicious payload that processes (malicious) Pinterest accounts to retrieve information on the CnC. For each targeted bank, the malware searches for the corresponding package on the smartphone, displays a given Pinterest URL and “hint” message. See this tweet of @bl4ckh0l3z.

In this article, we will focus on the packer which is quite interesting because it uses a native library + the decryption algorithm has changed (see table above).

Decrypting the payload

The malware is packed. The unpacking process consists in processing correctly an encrypted file in an asset directory named ./whrlrsu. The asset is encrypted with an XOR key, and zipped. The XOR key is memorized in the encrypted file at the 12th byte.

Payload decryption process

I implemented a payload decryptor, available on GitHub.

Preparing dynamic class

Loading dynamic classes is typically done via the DexClassLoader class, from the Android API. To conceal it loads a dynamic class, the malware does not directly call DexClassLoader. Instead, it implements a native library (libgdx.so) that calls DexClassLoader from the native layer.

A DexClassLoader object is instantiated by function nd(). This consists in (1) calling FindClass, (2) searching for a constructor, and (3) using the constructor to create a new object.

The native library implements the following low level tasks:

  • Object cr(Class class): calls create() for the given class (com.Loader). This actually instantiates a Loader object.
  • Object lrd(int arg0, Object arg1, String classname, String arg3): call loadClass() on the given class name and return the loaded class object.

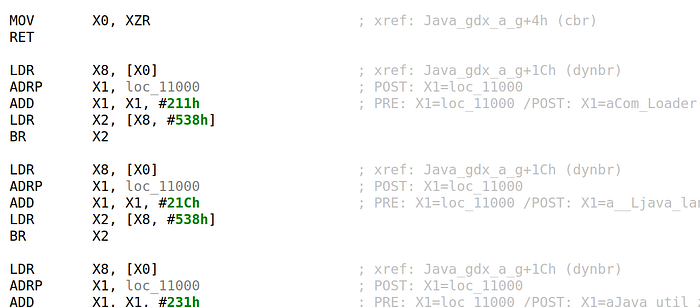

  • String g(int arg0): returns a different string depending on the argument. Beware, JEB currently decompiles it incorrectly: you must read the assembly.
If the integer is 0, the routine returns “dalvik.system.DexClassLoader”, for 1 it returns “com.Loader”, for 2 “()Ljava/lang/Object;” and for 3 “java.util.zip.InflaterInputStream”

In our case, the malware uses the routine with argument 1, so g() returns “com.Loader”. This is provided to lrd(), so the malware will load a class named com.Loader and contained in the dynamic DEX. Finally, it locates the method create() within com.Loader.

There are some other native functions, but they are not used in the next stage. Note that up to know, the malware does not execute its payload, it only “prepares” things. This is all OmApplication.onCreate() does. Execution is within the next stage.

Executing the payload

The next stage occurs when the main activity is launched. Actually, strangely, the manifest references 2 main activities: adlbect.kvActivity and adlbect.BnActivity, but actually adlbect.kvActivity does nothing more than calling adlbect.BnActivity.

Silly kvActivity does nothing more than starting BnActivity.

BnActivity starts the WqService — we’ll discuss it later — and calls native function a.ed(). The method decompiles in JEB quite nicely, and we quickly recognize code to hide an application icon.

Hiding an application icon consists in calling setComponentEnabledSetting method (name is truncated on the image above) on the PackageManager class, with special flags PackageManager.COMPONENT_ENABLED_STATE_DISABLED and PackageManager.DONT_KILL_APP. This is a well known trick to run an app while hiding its application icon.

As for the WqService, it launches start() of com.Loader this is how the banking trojan payload actually starts — and sets an alarm in 30 seconds.

This is onStartCommand() of WqService. This method is automatically called by Android when the WqService starts. a_set_alarm calls native function a.snc() to set an alarm. I don’t actually know what it uses this alarm for.

The implementation hardens the reversing because it does not call methods directly but delegates the work to 2 native functions: a.start() calls com.Loader.start(), and a.snc() to set the alarm.

List of native functions, and their description, in libgdx.so

Kudos to @MalwareHunterTeam and @bl4ckh0l3z.

— Cryptax

--

--
